Topics covered in this Lesson:

Creating Selection Sets | Changing your options

By now you have probably seen a colored rectangle appear on your screen when you left-click and the move the crosshairs around. You'll learn all about these in this lesson. AutoCAD uses what's called a selection set to allow you to group objects together and then modify them. For example, if you want to erase several lines, you could press E <ENTER>, pick on the line, press <ENTER> again and repeat until you're done. Another way would be to press E <ENTER>, and then pick the lines one by one until they are all selected, and press <ENTER>. By selecting a group of objects, you have created a selection set. Whenever you want to modify an object, and are asked by AutoCAD to "select objects" you can create a selection set and then apply the command.

REMEMBER TO PRESS ENTER WHEN YOU ARE FINISHED SELECTING THE OBJECTS

There are also a few other ways to create a selection set. The most common way is to use a window.

There are two very different types of windows you can use.

One is a 'crossing window' and the other is a box. If you create the window from right to left, you make a crossing window. This means that any object that crosses the border or is surrounded by the window is added to the selection set. This is shown as a green rectangle with a dotted outline on the screen. If you create the window from left to right, you create a box. Using this method you'll add only the items that are completely within the box. This is shown as a blue box on the screen. The difference is very important.

To summarize:

There are other ways to select objects and here a few of the more common ways. These can also be used in combination.

REMOVE - by typing R when asked to select objects, AutoCAD will select change to allow you to Remove objects from the selection set. You can also remove individual objects by pressing the Shift Key when selecting (known as a 'shift-select')

LAST - by typing L when asked to select objects, AutoCAD will select the last object that you created. This is handy if you create something and want to move or modify it right away.

PREVIOUS - by typing P when asked to select objects, AutoCAD will select the previous selection set. This is used if you select a few objects, modify them and then want to modify them again.

FENCE - by typing F when asked to select objects, AutoCAD allows you to draw a series of lines (called a fence) to select objects. This is convenient if you want to select a group of lines to be trimmed to a single cutting edge.

CROSSING POLYGON - typing CP when you are selecting objects give the ability to create a crossing polygon for object selection. This is similar to a crossing box (drawn like a Fence), but you can pick points on the screen to create a polygon. By default, this is a crossing polygon, therefore any objects that cross the polygon will be added to the selection set.

CROSSING WINDOW - typing WP (window polygon) when you are selecting objects give the ability to create a crossing window for object selection. This is similar to a crossing box, but you can pick points on the screen to create a polygon. This is a crossing window, therefore any objects that are completely within the polygon will be added to the selection set. Newer versions of AutoCAD allow you to use your cursor to create a crossing window without typing in the 'CW'.

CYCLING - When are ready to select objects, hold down the Shift key on your keyboard and then press the Space Bar when your mouse is on top of overlapping objects. Repeatedly press the Space Bar until the one object you want to modify is highlighted. Then pick with the mouse. This is a good approach if you have many objects in a small area.

To deselect everything you have selected, you just press the escape key on your keyboard or right-click and choose "Deselect All" from the menu.

TIP: Zoom in when selecting in tight spaces. Make sure you are 100% sure you are selecting the correct object. Imagine the difference of offsetting an interior wall instead of the exterior wall - the resulting object would be off by over 6 inches! Get used to zooming in, then zooming out quickly.

You need to quickly select objects in AutoCAD to be a good operator.

For practice, open one of your previous drawings and try selecting objects using all of the methods described above. Notice that as you move your cursor over an object the object will highlight.

Changing your selection options

Many people are happy with the default AutoCAD settings. Sometimes you might want to change your settings for things like your grip or pickbox size. This is totally personal and it's your call. I'll show how to change these, but remember where the settings are in case you want to change them back.

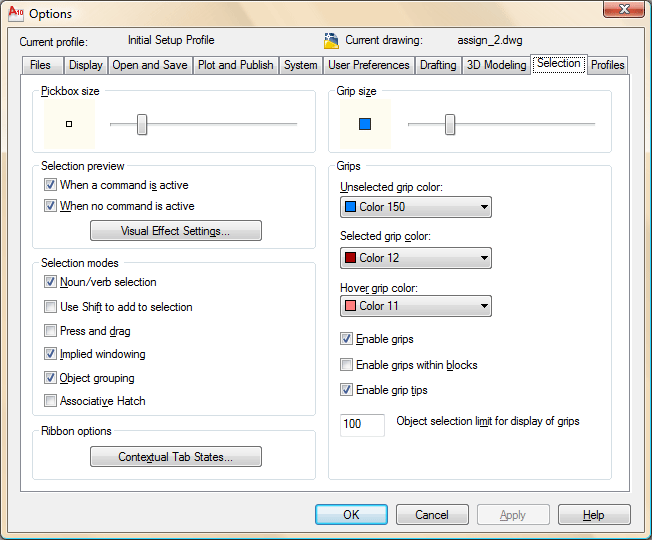

Type in OP for Options and look for the Selection tab. You'll see a dialog box that looks like the one below.

As you can see, you can customize a few things. Think about having a drawing that has a lot of blue lines in it. If you want, you can change your grip color so that they are clearer. Some people like a larger pickbox size, but I prefer a smaller box that is more precise. Another option that is used a lot is "Enable grips within blocks" - you'll learn about grips and blocks in later lessons.
